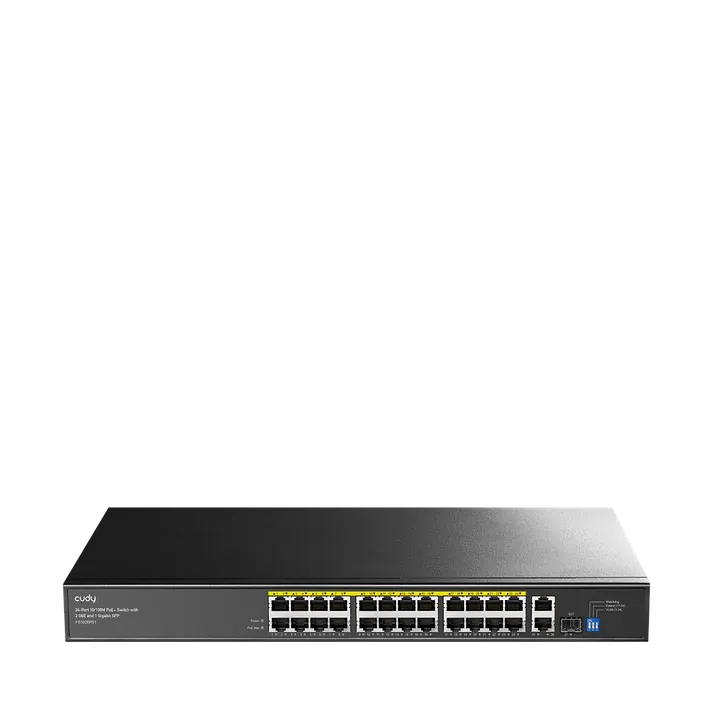

24-Port 10/100M PoE+ Switch with 2 GbE and 1 Gigabit SFP
FS1026PS1 4.0
A rack-mounted PoE+ switch with a 300W power supply and active cooling system, featuring independant control switch for Extend, VLAN, Watchdog feature.
المواصفات (عربي)
المنافذ
- 24 منفذ Fast Ethernet (100Mbps) مع PoE
- 2 منفذ Gigabit uplink RJ45
- 1 منفذ SFP جيجابت (Fiber)
- إجمالي 27 منفذ
الطاقة (PoE)
- يدعم معيار IEEE 802.3af / 802.3at
- قدرة لكل منفذ: حتى 30W
- إجمالي طاقة الجهاز: 300W
- توزيع ذكي للطاقة (يوقف آخر جهاز عند الضغط الزائد)
الأداء
- سعة التحويل: حوالي 10.8 Gbps
- معدل التمرير: 8 Mpps
- جدول MAC: 2048 عنوان
- دعم Jumbo Frame حتى 2KB
الميزات الذكية
- PoE Watchdog (إعادة تشغيل الأجهزة المعلقة تلقائيًا)
- VLAN Port Isolation (عزل المنافذ)
- Extend Mode (تمديد حتى 250 متر بسرعة 10Mbps)
التصميم
- هيكل معدني قوي (Metal housing)
- تركيب على رف (Rackmount 19")
- تبريد بمروحة ذكية (Smart Fan)
- تشغيل مستقر 24/7
الاستخدامات
- كاميرات مراقبة IP
- نقاط وصول WiFi (Access Points)
- شبكات شركات ومباني
- أنظمة إنترنت كبيرة
Specifications (English)
Ports
- 24× Fast Ethernet (10/100 Mbps) PoE ports
- 2× Gigabit RJ45 uplink ports
- 1× Gigabit SFP fiber uplink
- Total: 27 ports
PoE Power
- IEEE 802.3af / 802.3at supported
- Up to 30W per port
- Total power budget: 300W
- Smart power allocation (auto cut when overloaded)
Performance
- Switching capacity: 10.8 Gbps
- Forwarding rate: 8 Mpps
- MAC address table: 2048 entries
- Jumbo frame support: up to 2 KB
Smart Features
- PoE Watchdog (auto port reboot on freeze)
- VLAN isolation mode
- Extend mode up to 250m (10 Mbps)
Design
- Metal rackmount chassis (19”)
- Smart fan cooling system
- 24/7 continuous operation

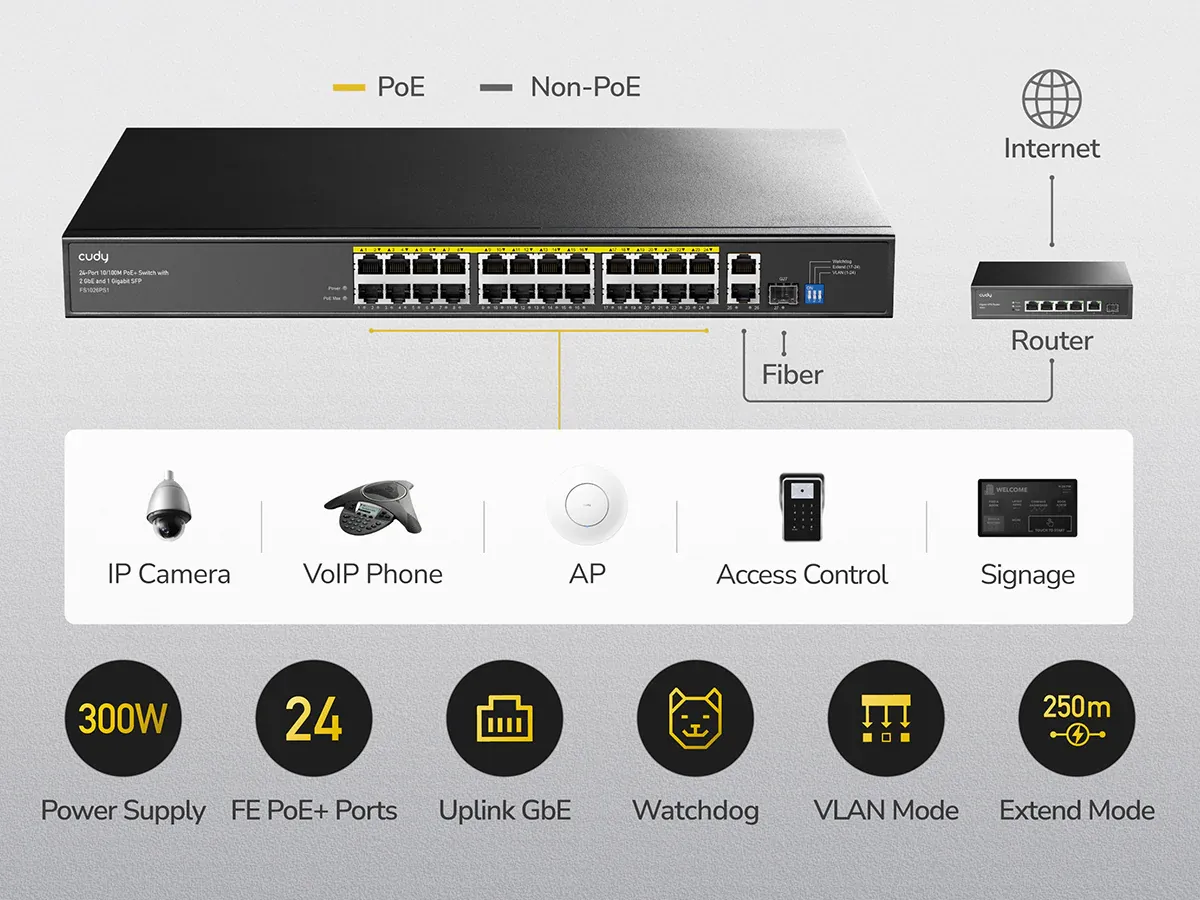

Typical Use Cases
- CCTV surveillance systems
- Wireless AP deployments
- Office/building networking
- Large structured cabling systems
