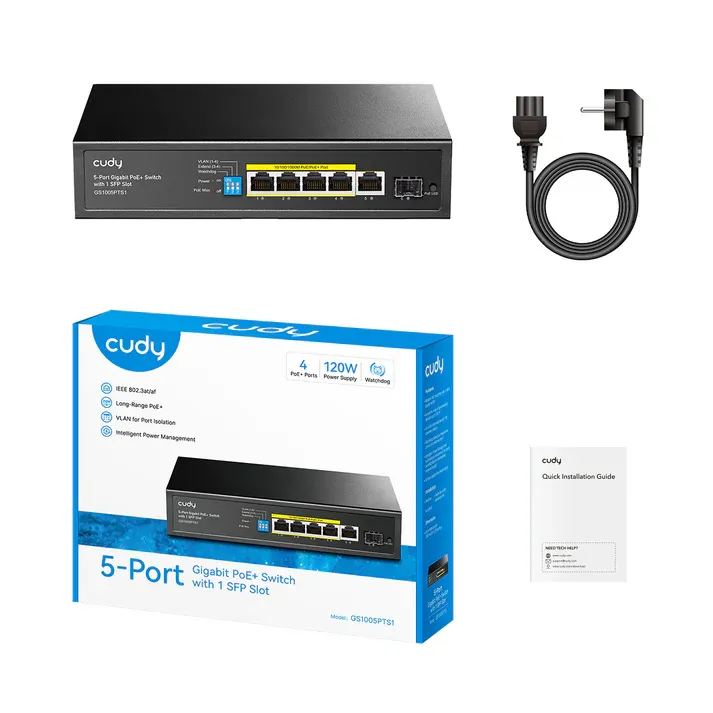

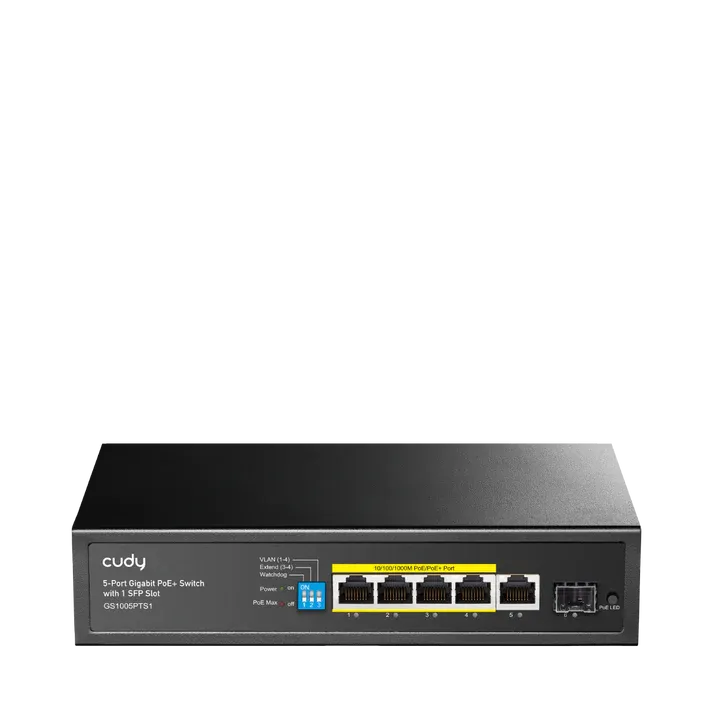

5-Port Gigabit PoE+ Switch with 1 SFP
GS1005PTS1
A 5-GbE, 1-SFP PoE switch with a 120W power supply and a silent cooling system, featuring independant control switch for Extend, VLAN, and Watchdog feature. Port 1 delivers up to 60W and the rest PoE ports deliver up to 30W power.
المواصفات (عربي)
- النوع: سويتش شبكة ذكي PoE+ (Light Managed Switch)
- عدد المنافذ:
- 4 منافذ Gigabit PoE+ (RJ45)
- 1 منفذ Gigabit Uplink RJ45
- 1 منفذ SFP (ألياف ضوئية)
- إجمالي المنافذ: 5 RJ45 + 1 SFP
السرعة والأداء
- سرعة جميع المنافذ: 10/100/1000 Mbps (Gigabit)
- سعة التحويل (Switching Capacity): حتى 12 Gbps تقريبًا
- معدل التمرير: حوالي 8.9 Mpps
- جدول MAC: 2048 عنوان
- دعم Jumbo Frame: حتى 9–16 KB حسب الإصدار
PoE (تغذية الطاقة عبر الشبكة)
- دعم المعايير: 802.3af / 802.3at
- إجمالي قدرة PoE: 120W
- أقصى طاقة لكل منفذ:
- المنفذ 1: حتى 60W
- المنافذ 2–4: حتى 30W لكل منفذ
- إدارة ذكية للطاقة (توزيع تلقائي عند الضغط)
الميزات
- VLAN (عزل الشبكات)
- Extend Mode (تمديد حتى 250 متر بسرعة 10Mbps)
- PoE Watchdog (إعادة تشغيل تلقائي للأجهزة المعلقة)
- IGMP Snooping
- STP / RSTP لمنع التكرار (Loop Prevention)
- Port Isolation و QoS
- إدارة عبر Web + SNMP
التصميم
- هيكل معدني
- تركيب:
- مكتبي
- أو رف (Rackmount)
- تبريد ذكي (Fan/Passive حسب الإصدار)
- تشغيل مستمر 24/7
الاستخدام
- كاميرات مراقبة IP
- نقاط وصول Wi-Fi
- شبكات الشركات والمباني
- تمديد شبكة PoE لمسافات طويلة
Specifications (English)
- Type: Light-Managed PoE+ Switch
- Ports:
- 4× Gigabit PoE+ RJ45 ports
- 1× Gigabit RJ45 uplink
- 1× SFP fiber uplink
- Total: 5 RJ45 + 1 SFP
Performance
- Speed: 10/100/1000 Mbps (Gigabit)
- Switching capacity: ~12 Gbps
- Forwarding rate: ~8.9 Mpps
- MAC table: 2048 entries
- Jumbo frame: up to 9–16 KB (variant dependent)
PoE Power
- Standards: IEEE 802.3af / 802.3at
- Total PoE budget: 120W
- Per-port max:
- Port 1: up to 60W
- Ports 2–4: up to 30W each
- Intelligent power allocation
Features
- VLAN support
- Extend mode up to 250m (10 Mbps)
- PoE Watchdog (auto reboot stuck devices)
- IGMP Snooping
- STP/RSTP loop prevention
- QoS, Port Isolation
- Web management + SNMP
Design & Use
- Metal housing
- Desktop or rackmount installation
- 24/7 operation
- Used for CCTV, APs, and enterprise networks
