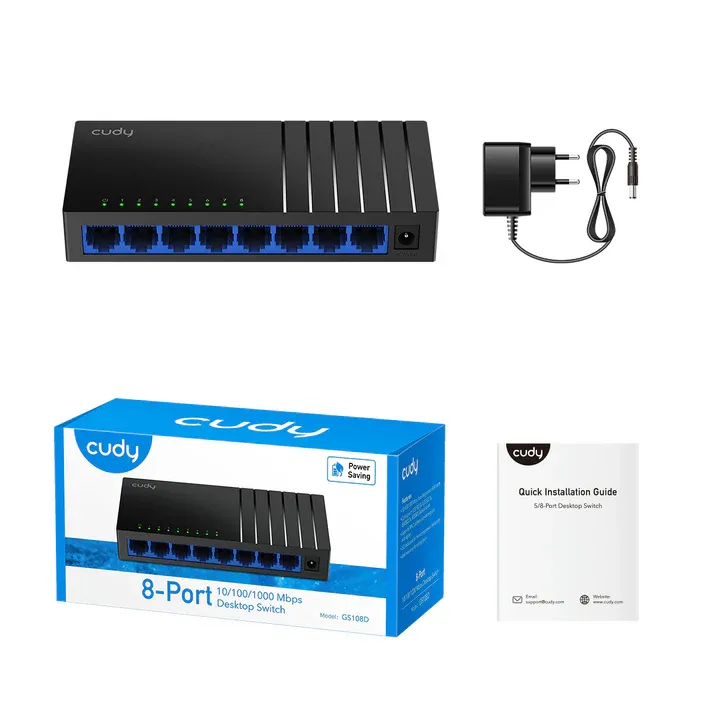

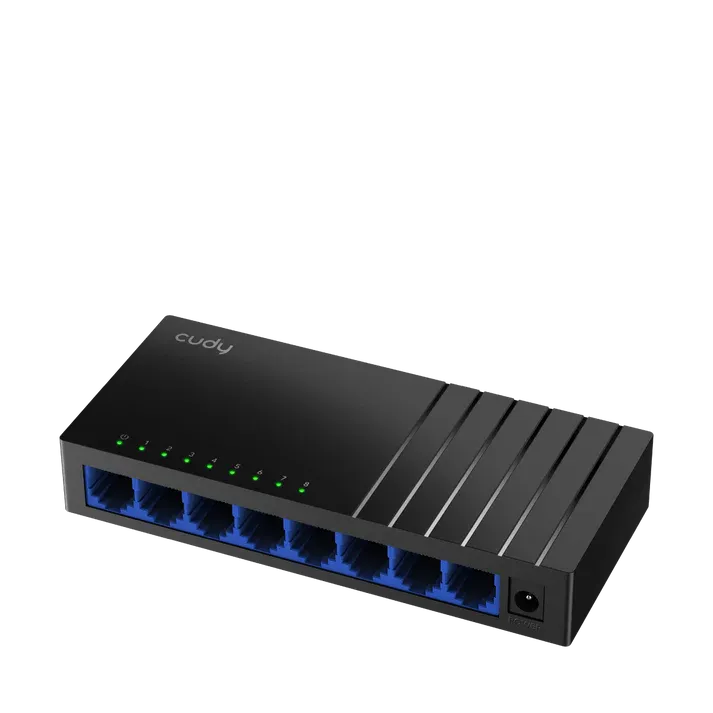

8-Port Gigabit Unmanaged Switch
GS108D
المواصفات العربية
• الموديل: Cudy GS108D
• النوع: سويتش شبكة جيجابت غير مُدار 8 منافذ
المنافذ
• 8× منافذ RJ45 جيجابت (10/100/1000 Mbps)
• دعم Auto MDI/MDIX
• دعم التوصيل والتشغيل Plug & Play
• مؤشرات LED للطاقة وحالة الاتصال
الأداء
• سعة التحويل: 16 جيجابت/ثانية
• معدل التمرير: 11.904 مليون حزمة/ثانية
• جدول MAC حتى 8192 عنوان
• دعم Jumbo Frame حتى 15KB
• ذاكرة Packet Buffer بحجم 4Mbit
• نقل جيجابت حتى 170 متر باستخدام Cat5e/Cat6
مميزات الشبكة
• دعم IEEE 802.3 / 802.3u / 802.3ab
• دعم التحكم في التدفق IEEE 802.3x
• دعم IGMP Snooping
• دعم Loop Prevention
• نقل بيانات Non-blocking
الطاقة
• مدخل طاقة DC 5V⎓0.55A
• استهلاك أقصى للطاقة: 2.75 وات
• استهلاك أثناء الخمول: 2.2 وات
• تصميم موفر للطاقة
التصميم
• هيكل بلاستيكي مدمج
• تشغيل صامت بدون مروحة
• تركيب مكتبي أو جداري
• تصميم صغير وخفيف الوزن
المسافة
• حتى 100 متر بسرعة 10/100Mbps
• حتى 170 متر بسرعة Gigabit باستخدام كابلات Cat5e أو أعلى
الاستخدامات
• الشبكات المنزلية
• المكاتب الصغيرة
• توصيل أجهزة الكمبيوتر والطابعات
• أنظمة المراقبة البسيطة
• توسيع منافذ الشبكة بسهولة
--------------------------------------------------------------------------------------------------------------------------------------------------------
English Specifications
• Model: Cudy GS108D
• Type: 8-Port Gigabit Unmanaged Ethernet Switch
Ports
• 8× RJ45 Gigabit Ethernet ports (10/100/1000 Mbps)
• Auto MDI/MDIX support
• Plug & Play operation
• LED indicators for power and link status
Performance
• Switching capacity: 16 Gbps
• Forwarding rate: 11.904 Mpps
• MAC address table: 8192 entries
• Jumbo frame support up to 15 KB
• 4 Mbit packet buffer
• Gigabit transmission up to 170m using Cat5e/Cat6
Switching Features
• IEEE 802.3 / 802.3u / 802.3ab support
• IEEE 802.3x flow control
• IGMP Snooping support
• Loop prevention support
• Non-blocking switching architecture
Power
• DC power input: 5V⎓0.55A
• Max power consumption: 2.75W
• Idle power consumption: 2.2W
• Energy-efficient design
Design
• Compact plastic housing
• Fanless silent operation
• Desktop or wall-mount installation
• Lightweight compact design
Distance
• Up to 100m at 10/100 Mbps
• Up to 170m Gigabit transmission using Cat5e or higher cables
Use Cases
• Home networking
• Small office networks
• Connecting PCs and printers
• Basic surveillance systems
• Easy network expansion
