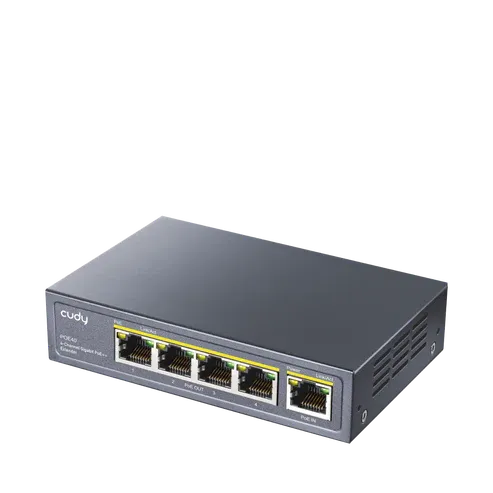

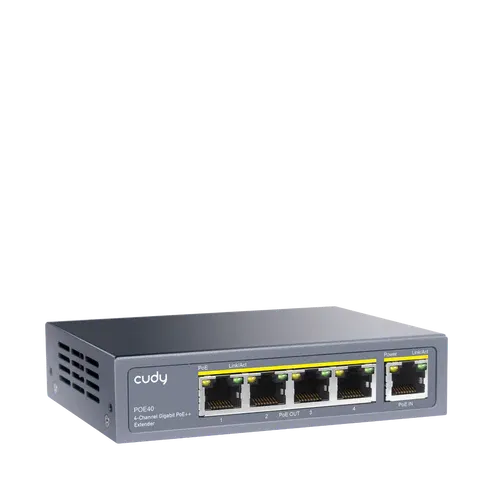

4-Channel PoE Extender
POE40 1.0
A 4-channel PoE extender that extends the PoE distance by 100m.
المواصفات (عربي)
- النوع: مكرر/موسّع PoE (PoE Extender)
- الوظيفة: تقسيم اتصال PoE واحد إلى عدة مخارج مع توسيع المسافة
المنافذ
- 1 منفذ PoE IN (مدخل)
- 4 منافذ PoE OUT (مخارج)
- جميع المنافذ: Gigabit Ethernet (10/100/1000 Mbps)
الطاقة
- دعم PoE: 802.3af / 802.3at / 802.3bt
- دخل الطاقة: حتى 60W أو أكثر (حسب المصدر)
- خرج الطاقة:
- حتى 2 منافذ × 30W
- أو 4 منافذ × ~12.95W لكل منفذ
- استهلاك الجهاز نفسه: حوالي 2W
الأداء والمسافة
- وضع عادي: حتى 100 متر بسرعة جيجابت
- وضع Extend:
- حتى 250 متر
- لكن السرعة تنخفض إلى 10 Mbps
الميزات
- VLAN لعزل الأجهزة
- PoE Watchdog لإعادة تشغيل الأجهزة تلقائيًا
- دعم توصيل سلسلة (Daisy Chain) حتى 3 أجهزة
- حماية من:
- زيادة الجهد
- القصر الكهربائي
- عكس القطبية
التصميم
- هيكل معدني
- تركيب جداري أو على سطح
- تشغيل داخلي (Indoor)
- يعمل بدون إعدادات (Plug & Play)
الاستخدام
- كاميرات مراقبة IP
- نقاط وصول Wi-Fi
- تمديد شبكة PoE في المباني والممرات

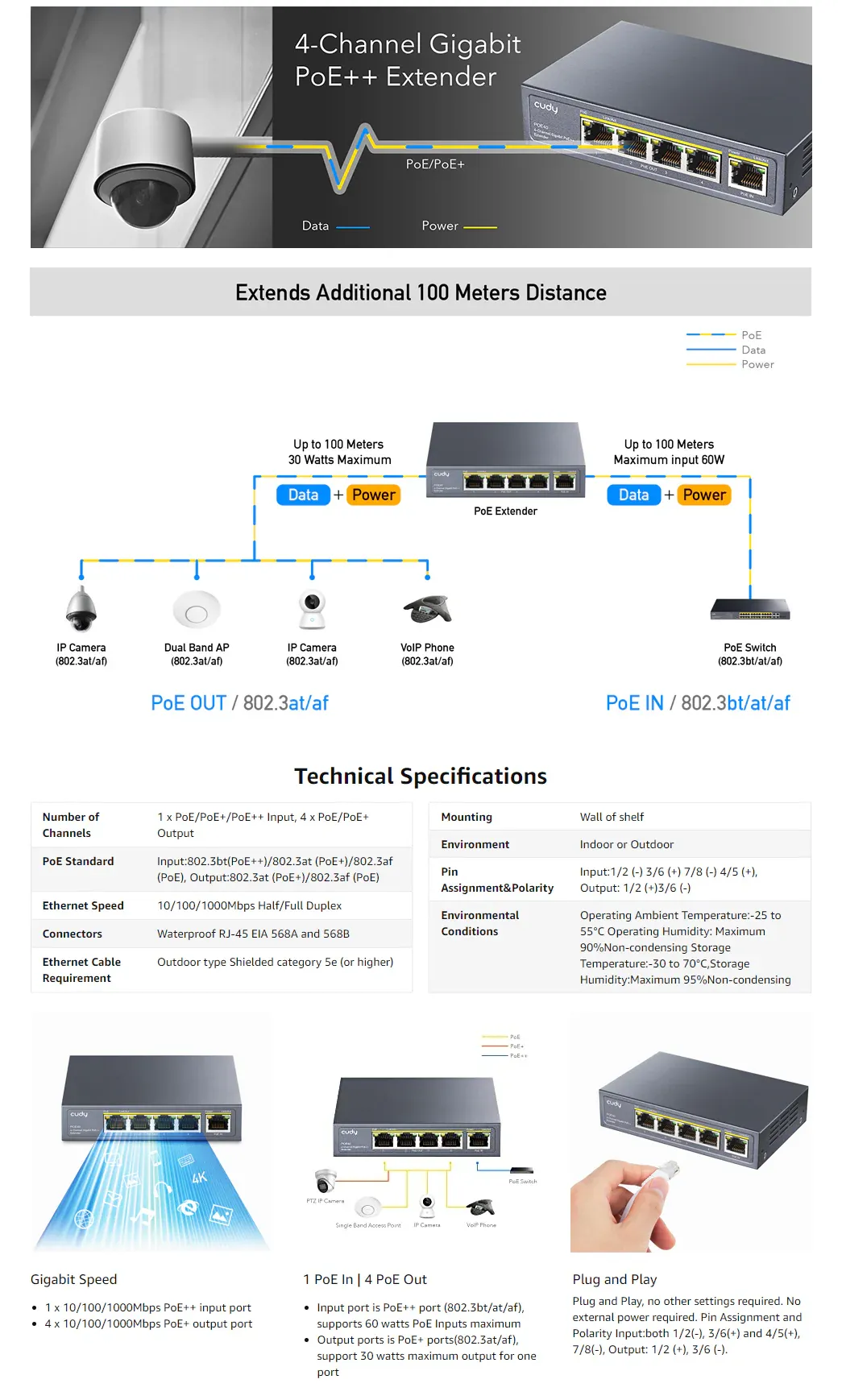

Specifications (English)
- Type: PoE Extender / Splitter
- Function: Extends one PoE input into multiple PoE outputs
Ports
- 1× PoE IN (uplink)
- 4× PoE OUT
- All ports: Gigabit Ethernet (10/100/1000 Mbps)
Power
- PoE standards: 802.3af / 802.3at / 802.3bt
- Input power: up to ~60W+ (depends on injector/switch)
- Output:
- 2× ports up to 30W each, or
- 4× ports ~12.95W each
- Device consumption: ~2W
Performance & Distance
- Normal mode: up to 100m at Gigabit speed
- Extend mode:
- up to 250m range
- speed reduced to 10 Mbps
Features
- VLAN support (port isolation)
- PoE Watchdog (auto reboot frozen devices)
- Daisy chain support up to 3 units
- Protection: over-voltage, short circuit, polarity protection
Design
- Metal housing
- Wall or desktop mounting
- Indoor use
- Plug & Play (no configuration required)
Use cases
- IP surveillance cameras
- Wi-Fi access points
- Extending PoE networks in buildings and corridors
